Go back previous activity without Reloading or Refreshing activity in Android
In this article, I am going to demonstrate how to go back to previous activity without reloading and refreshing the activity every time.
When we use Intent class and start activity method to back previous activity then our application refreshed again as well as takes time to reload.
To use the start activity method you should know the name of previous activity. For all these reasons you can follow my steps which steps will be saved your code and time, as well as your application, will be run fast.
Follow the steps which are given below -:
- Open Eclipse
- Select New Android Application Project
- Enter Application Name as BackNoRefresh
- Click Next
- Click Finish.

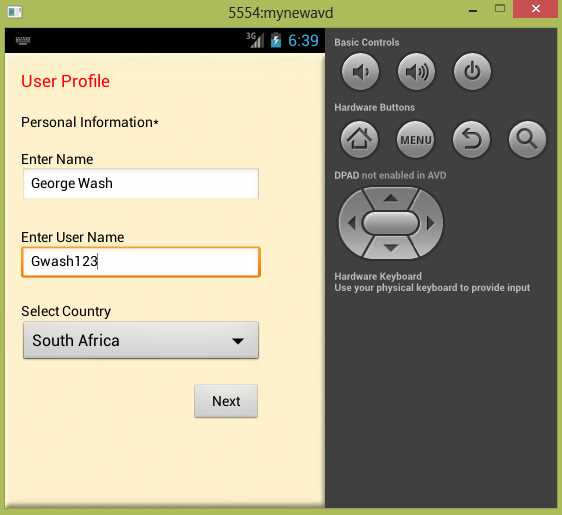

Now go to the res/layout/activity_main.xml and paste the following code
<RelativeLayoutxmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
style="@style/Container"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_gravity="center"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".MainActivity" >
<TextView
android:id="@+id/tvEName"
android:layout_marginTop="80dp"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentTop="true"
android:text="@string/EnterName"
android:textColor="#000"
android:textSize="14sp" />
<EditText
android:id="@+id/etUID"
android:layout_width="240dp"
android:layout_height="35dp"
android:layout_alignParentLeft="true"
android:layout_alignRight="@+id/etEname"
android:layout_below="@+id/tvEName"
android:ems="10"
android:hint="@string/EName"
android:maxLength="20"
android:textSize="14sp" />
<requestFocus />
<TextView>
android:id="@+id/tvUIDName"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@+id/etUID"
android:layout_marginTop="24dp"
android:text="@string/Enter_name"
android:textColor="#000"
android:textSize="14sp" />
<EditText
android:id="@+id/etEname"
android:layout_width="240dp"
android:layout_height="35dp"
android:layout_alignParentLeft="true"
android:layout_below="@+id/tvUIDName"
android:ems="10"
android:hint="@string/UserName"
android:maxLength="15"
android:textSize="14sp" />
<TextView
android:id="@+id/tvState"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_below="@+id/etEname"
android:layout_marginTop="20dp"
android:text="@string/Sel_State"
android:textColor="#000"
android:textSize="14sp" />
<Spinner
android:id="@+id/spState"
android:layout_width="240dp"
android:layout_height="44dp"
android:layout_below="@+id/tvState" />
<Button
android:id="@+id/btnSubmit"
android:layout_marginLeft="80dp"
android:layout_width="70sp"
android:layout_height="40sp"
android:layout_below="@+id/spState"
android:layout_marginTop="19dp"
android:layout_toRightOf="@+id/tvState"
android:text="@string/Submt" />
<TextView
android:id="@+id/tvProfile"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentTop="true"
android:text="User Profile"
android:textColor="#000"
android:textSize="17sp" />
<TextView
android:id="@+id/tvPersonalInfo"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_below="@+id/tvProfile"
android:layout_marginTop="20dp"
android:text="Personal Information*"
android:textColor="#000" />
</RelativeLayout>
And add a two new layout XML file name should be second.xml and third.xml
In second.xml add the TextView and EditText to bind the user information which is coming from Main Activity.
In second.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"
style="@style/Container"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical" >
<TextView
android:id="@+id/tvHead"
android:layout_width="210dp"
android:layout_height="wrap_content"
android:layout_marginRight="25dp"
android:text="@string/welcome"
android:textSize="18sp" />
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical" >
<TextView
android:id="@+id/tvContact"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="30sp"
android:text="Contact Information*"
android:textColor="#000" />
<TextView
android:id="@+id/tvContact"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="30sp"
android:text="Contact Number"
android:textColor="#000" />
<EditText
android:id="@+id/etContact"
android:layout_width="270dp"
android:layout_height="40dp"
android:ems="10"
android:hint="Contact"
android:inputType="number" />
<TextView
android:id="@+id/tvAddress"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Address"
android:textColor="#000" />
<EditText
android:id="@+id/etAddress"
android:layout_width="270dp"
android:layout_height="40dp"
android:ems="10"
android:hint="Address" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content" >
<Button
android:id="@+id/btnBack"
android:layout_width="72dp"
android:layout_height="40dp"
android:layout_marginLeft="110dp"
android:layout_marginTop="15dp"
android:onClick="Back"
android:text="@string/Back" />
<Button
android:id="@+id/btnNext"
android:layout_width="72dp"
android:layout_height="40dp"
android:layout_marginLeft="10dp"
android:layout_marginTop="15dp"
android:onClick="GetNext"
android:text="Next" />
</LinearLayout>
</LinearLayout>
And third.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"
style="@style/Container"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical" >
<TextView
android:id="@+id/tvWelcome"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Welcome"
android:textColor="#000" />
<TextView
android:layout_marginTop="25dp"
android:id="@+id/tvOtherInfo"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Other Information *"
android:textColor="#000" />
<TextView
android:layout_marginTop="30dp"
android:id="@+id/textView3"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Marital Status-:"
android:textColor="#000" />
<Spinner
android:id="@+id/spinCheckMarried"
android:layout_width="match_parent"
android:layout_height="wrap_content" />
<TextView
android:id="@+id/tvNationality"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Nationality"
android:textColor="#000" />
<EditText
android:id="@+id/etNationality"
android:hint="Nationality"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:ems="10" >
<requestFocus />
</EditText>
<LinearLayout android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal" >
<Button
android:layout_marginLeft="39dp"
android:id="@+id/btnBack"
android:layout_width="75dp"
android:layout_height="50dp"
android:text="Back" />
<Button
android:layout_marginLeft="39dp"
android:id="@+id/btnFinish"
android:layout_width="75dp"
android:layout_height="50dp"
android:text="Finish" />
</LinearLayout>
</LinearLayout>
Define the activity in AndroidManifest.xml
<activity android:name="com.example.backnorefresh.Second" android:theme="@android:style/Theme.NoTitleBar"/>
<activity android:name="com.example.backnorefresh.Third"
android:theme="@android:style/Theme.NoTitleBar"/>
</application>
Now write the following code in MainActivity.java
In MainActivity.java send the User Name to another activity by using Intent class.
package com.example.backnorefresh;
public class MainActivity extends Activity {
TextView tvProfile;
EditText etUname;
EditText etUid;
EditText etContact;
ListView lvState;
Spinner spState;
Button btnSubmit;
// ArrayAdapter is defined for set the value Country list in spinner control
ArrayAdapter<String> adapter;
ArrayList<String> stateList = new ArrayList<String>();
@Override
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
super.onResume();
setContentView(R.layout.activity_main);
btnSubmit = (Button) findViewById(R.id.btnSubmit);
etUname = (EditText) findViewById(R.id.etUID);
etUid = (EditText) findViewById(R.id.etEname);
tvProfile = (TextView) findViewById(R.id.tvProfile);
//Set the country name in statelist which ArrayList, defined on the top
stateList.add("Africa");
stateList.add("Australia");
stateList.add("Belgium");
stateList.add("Brazil");
stateList.add("Canada");
stateList.add("China");
stateList.add("Europe");
stateList.add("France");
stateList.add("Greenland");
stateList.add("Iceland");
stateList.add("India");
stateList.add("Japan");
stateList.add("Maxico");
stateList.add("New Zealand");
stateList.add("South Africa");
stateList.add("Turkey");
stateList.add("United States");
spState = (Spinner) findViewById(R.id.spState);
// In Array adapter set the statelist and In Spinner control set the ArrayAdapter
adapter = new ArrayAdapter<String>(this,android.R.layout.simple_spinner_item, stateList);
adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
spState.setAdapter(adapter);
tvProfile.setTextColor(Color.RED);
btnSubmit.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
new Thread(new Runnable() {
@Override
public void run() {
// TODO Auto-generated method stub
try {
Intent intent = new Intent(MainActivity.this, Second.class);
String sUname = etUname.getText().toString();
// Insert the value in Intent which is forward in another activity
intent.putExtra("user", sUname);
startActivity(intent);
} catch (Exception ex) {
Toast.makeText(getApplicationContext(), ex.toString(), Toast.LENGTH_LONG).show();
}
}
}).start();
}
});
}
}}
And write the following code in Second.java
package com.example.backnorefresh;
@SuppressLint("ResourceAsColor")
public class Second extends Activity {
TextView tvHead, tvUname, tvUid, tvContact, tvState;
Button btnBack, btnNext;
EditText etuser;
@Override
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
setContentView(R.layout.second);
try {
tvHead = (TextView) findViewById(R.id.tvHead);
tvHead.setTextColor(Color.RED);
String sUser = (String) getIntent().getExtras().get("user");
tvHead.setText("Welcome -: " + sUser);
} catch (Exception ex) {
Toast.makeText(getApplicationContext(), ex.toString(),
Toast.LENGTH_LONG).show();
}
}
@Override
public void onBackPressed() {
// Write your code here
super.onBackPressed();
}
public void Back(View v) {
onBackPressed();
}
public void GetNext(View view) {
try {
Intent intent = new Intent(Second.this, Third.class);
String sName = (String) getIntent().getExtras().get("user");
intent.putExtra("name", sName);
startActivity(intent);
} catch (Exception ex) {
Toast.makeText(getApplicationContext(), ex.toString(),
Toast.LENGTH_LONG).show();
}
}
}
And now write the following code in Third.java
package com.example.backnorefresh;
public class Third extends Activity {
TextView tvUserName,tvFname,tvMname;
Button btnBack; Button btnBack;
@Override
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
setContentView(R.layout.third);
tvUserName = (TextView) findViewById(R.id.tvWelcomeUser);
tvFname=(TextView)findViewById(R.id.tvFname);
tvMname=(TextView)findViewById(R.id.tvMname);
btnBack = (Button) findViewById(R.id.btnBack);
String sUserName = (String) getIntent().getExtras().get("Uname");
String sFName = (String) getIntent().getExtras().get("Fathername");
String sMName = (String) getIntent().getExtras().get("Mothername");
tvUserName.setTextColor(Color.RED);
tvUserName.setTextSize(20);
tvUserName.setText("Welcome -: " + sUserName);
tvFname.setText("Father Name-: "+sFName);
tvMname.setText("Mother Name-: "+sMName); btnBack.setOnClickListener(new View.OnClickListener() {
//This code will be back in previous activity @Override
public void onClick(View v) {
try {
onBackPressed();
} catch (Exception ex) {
Toast.makeText(getApplicationContext(), ex.toString(),
Toast.LENGTH_LONG).show();
} }
}); }
@Override
public void onBackPressed() {
// Write your code here super.onBackPressed();
}
}
Now run your Application, output like this
Enter the value in form fields (Name, User Name, and Country). Click n Next button.
It will open a new activity
Fill your Contact Number and Address or click back button.
After click back button, back the previous activity without refresh or reload
If you are fill your Father Name and Mother name then click Next button
Now a new activity will be open
In Back button click the previous activity will be open without refreshing and
reloading.
If Fill your marital status and Nationality then click finish
If you click Finish button then you will get a message and new refresh page will be
open
Thanks for reading this article. You can enter your valuable comments and
suggestion to improve this article in the comment box.
You should also read this Article - https://www.mindstick.com/Articles/1799/simple-registration-form-using-java-swing
Arvind Reddy
20-Nov-2018what code should be written in "//write your code here"
